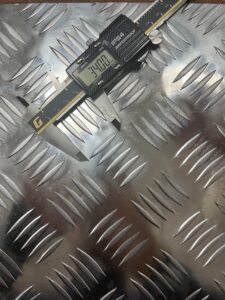

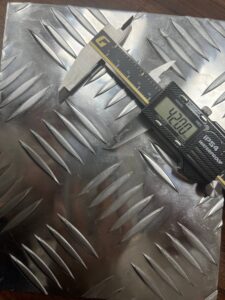

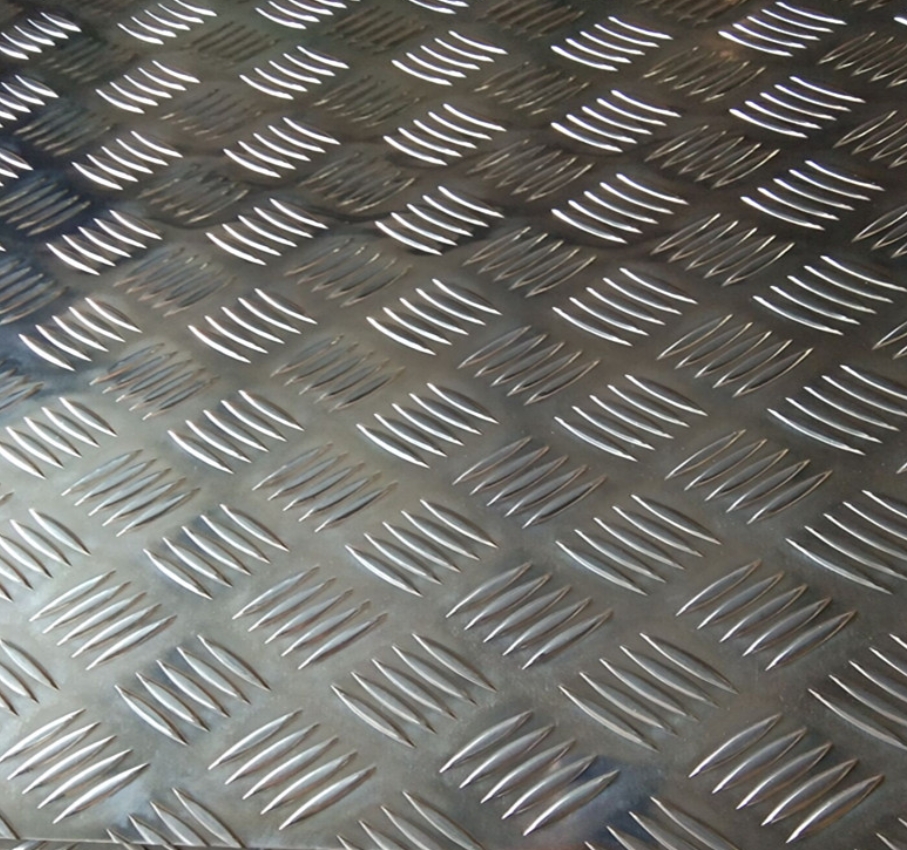

5 bar aluminum tread plate is also known as aluminum ribbed plate or aluminum diamond plate 5 bars. The surface always have 5 pattern or ribbed and other side have smooth surface. Our factory can produce three different pattern length: Big 5 bar length is 42mm, middle 5 bar length is 36mm, small 5 bar length is only 34mm. The maximum height of the bar can reach 1.2mm.

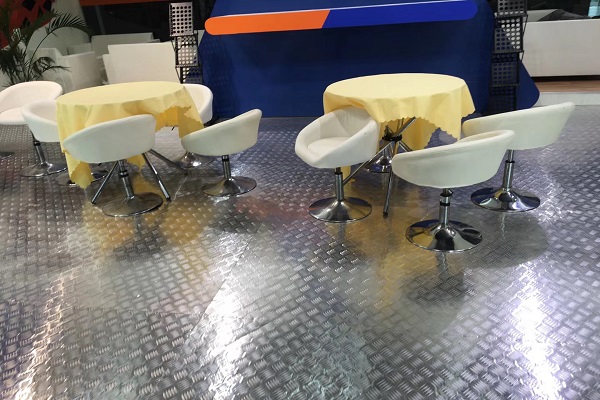

HC company always produce two different surface of the Aluminum diamond plate 5 bar. The normal one is mill finish which means that no further treatment after the rolling and the surface is bright. Mainly for anti-skid usage, like refrigeration floor, truck floor, flooring, stairs,ship deck, vehicle step. Another surface is high polish aluminum diamond plate 5 bars, the surface is like mirror which means very bright. The bright surface aluminum diamond plate 5 bars always used for indoor decoration, like wall, furniture, touring car or vehicle, motorhome and so on.
Alloy Number: 1050, 1100, 3003,3105, 5052, 6061,
Temper: O, H12, H14, H24, H16, H26, H18,T6
Surface treatment: Mill finish, mirror finish, paper-interleaved;
Aluminum tread plate design: big 5 bar length: 42mm, small 5 bar aluminum tread plate 34mm or 36mm.
Thickness: 0.7mm- 20mm
Width: 60mm to 2700mm
5 bar aluminum tread plate maximum bar height: over 1.2mm.
Packaging: Standard seaworthy export packing,Fumigation wooden pallet.
Delivery time: 30 Days
Payment: T/T, L/C at sight
5 bar Aluminum tread plate features:
|
Standard: ASTM-B209 ; GB/T3880-2012, EN485 |
||||||||||
|
Chemistry Composition |
||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al |
| 1060 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 99.6 | ||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 99.5 | ||
| 1100 | 0.95 | 0.05-0.2 | 0.05 | 0.1 | 99.0 | |||||
| 1200 | 1.0 | 0.05 | 0.05 | 0.1 | 0.05 | 99.0 | ||||
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | 0.1 | remainder | ||||
5 bar Aluminum tread plate 3003 H16/H22 application and usage:
-Use: It is mainly used for the work with slightly higher strength requirement than Series 1, such as pressure tank, storage tank, heat preservation material, mechanical parts, automobile and aircraft fuel tank, etc. It is used in air conditioner, refrigerator, car and plane. Conventional applications in air conditioning, refrigerators, under the car and other humid environments, the price is higher than 1 x x x x series, is a more commonly used alloy series.
5 bar aluminum tread plate price Chile.
The aluminum diamond plate price changes everyday and it depends on the market.
Here is our aluminum sheet price per KGS for you:
| ALLOY | Thickness | FOB Price
USD/KGS |
Produce time | MOQ | Standard Size | 1 x20FCL |
| 1050 H24
1100 H14 |
0.7mm to 6mm | 2.20USD/KGS | 15 Days | 3 TONS | 4’ x 8’
1000 x 3000mm |
22 Tons |
| 3003 H14 | 0.8mm to 6mm | 2.25USD/KGS | 15 Days | 3 TONS | 4’ x 8’
1220 x 2440mm |
22 Tons |
| 5052 H32 | 1.0mm to 6mm | 2.51USD/KGS | 30 Days | 3 TONS | 4’ x 8’ | 22 Tons |
| 6061 T6 | 1.0mm to 20mm | 2.95USD/KGS | 30 Days | 3 TONS | 4’ x 8’ | 22 Tons |

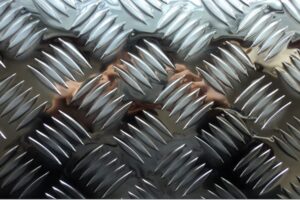

Aluminum tread plate 5 bar alloy 1100 H14
Alloy 1050 H14 is the most wildly used alloy number. Because it is bright surface, also very good corrosion resistance to water or rain. So mainly used for Refrigeration floor, Truck floor, flooring, stairs, indoor and outdoor decoration
FAQ:
How much does a 4 x 8 aluminum plate diamond weigh?
We know that it’s very easy to calculate the weight of aluminum flat sheet with density 2.71, but for aluminum diamond plate, we should take the weight of bar into consideration. With all factors, we can make the density be 2.95 or 3.0. For 4 x 8 aluminum plate diamond weigh is about 8.93KGS per sheet.
