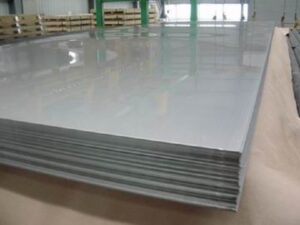

5454 aluminum sheet
5454 H32 / O Aluminum plate [AL MG3Mn]
Mainly use is for aluminum tank trailer,Oil tank,dump body,
Standard: ASTM B209 unless otherwise stipulated.
Standard thickness: 0.2040″(5.18mm),0.2500″(6.35mm);
Standard size: 89’’ x 259’’(2260.60mm x 6578.60mm); 96’’ x 96’’(2438mm x 2438mm)
Seaworthy packages: protect from humidity,Avoid All Moisture Contamination
Skids suitable to load in Flat-Rack contains or 1x 40FCL;
Mainly market: USA, Canada, Mexico, Europe, etc,
Aluminum sheet 5454 H32
Aluminum sheet 5454 O
Alloy Number: 5454
Temper: O, H111, H112, H32, H34
Surface treatment: Mill finish, one side blue PVC films, both side blue PVC films,paper-interleaved
Thickness: 1.0mm- 30mm
Width: 500mm to 2600mm
Max length: 11.5 Meter or be coil,
Packaging: Standard seaworthy export packing
Delivery time: 30 Days
Payment: T/T, L/C at sight
5454 aluminum sheet Chemistry Composition & Mechanical Properties & features:
| Element | Si | Fe | Cu | Mn | Mg | Cr | Ti | Zn | Al | |
|---|---|---|---|---|---|---|---|---|---|---|
| Standard Value | ≤0.25 | ≤0.40 | ≤0.10 | 0.50-1.0 | 2.4-3.0 | 0.05-0.20 | ≤0.20 | ≤0.25 | Remainder | |
| Actual Value | 0.06 | 0.28 | 0.03 | 0.87 | 2.77 | 0.09 | 0.02 | 0.02 | Remainder |
| Alloy & Temper | Tensile Strength Mpa | Elongation（%） | Yield Strength Mpa | Surface | |
|---|---|---|---|---|---|
| 5454 H32 | 250-305 | >8 | >180 | Qualified | |
| 5454 O | 215-275 | >18 | 109 | Qualified |
ALUMINUM SHEET 5454 O APPLICATION and usage:
Application: ship building plate, tank trailer,Oil tank，caner end, ring pull, auto body sheet, auto inner plate, anti-slip checkered plate, container, tank car, oil tanker, mold, storage tank, marine facilities etc
5454 aluminum sheet price per sheet / per kgs
The aluminum sheet price changes everyday and it depends on the market.
Here is our aluminum sheet price per KGS for you:
| ALLOY | Thickness | FOB Price USD/KGS | Produce time | MOQ | Standard Size | 1 x20FCL | |
|---|---|---|---|---|---|---|---|
| 5454 H32 | 1mm to 8mm | 2.65USD/KGS | 30 Days | 13 TONS | 96’’ x 96’’ | 25 Tons | |
| 5454 O | 8mm to 100mm | 2.65USD/KGS | |||||

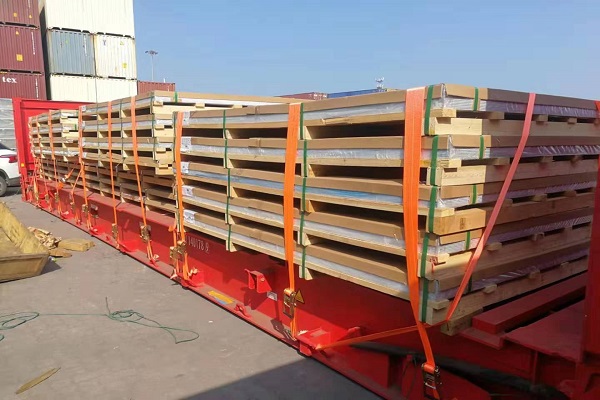

ALUMINUM SHEET 5454 H111 PACKING AND LOADING:
The aluminum plate are Seaworthy packages to be protect from humidity,Avoid All Moisture Contamination. Heat#’s recorded on all bundles, Do not mix heats within bundles,Bundle individual sizes separately. Also we will put 2-3 mils medium tack clear or clear blue PVC one side. Critical surface quality:No chatter, no Pitt marks, no weld, no stains accepted; Skids suitable to load in Flat-Rack contains.
