Aluminum Chequered Plate
Aluminum checkered plate is also named aluminum tread plate,aluminum chequered plate, the surface always have some pattern or ribbed, like 1 bar, 3 bar, 5 bar plate, orange peel stucco sheet. The mainly application is refrigeration floor, truck floor, flooring, stairs, tool box, ship deck, indoor and outdoor decoration.
Aluminum checkered plate specification
Alloy Number: 1050,1100,3003,3105,5052 6061,
Temper: O, H12, H14, H24, H16, H26, H18,T6
Surface treatment: mill finish, mirror finis, high polished surface,

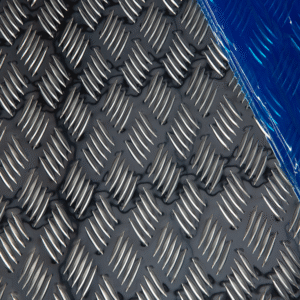

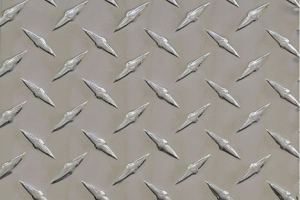

Aluminum tread plate design: 5bars, 1bars, 3bars, 2bars;
Thickness: 0.6mm- 20mm
Width: 500mm to 2700mm
Max length: 11.5 Meter or be coil,
Packaging: Standard seaworthy export packing,Fumigation wooden pallet.
Delivery time: 30 Days
Payment: T/T, L/C at sight
Aluminum checkered plate Chemistry Composition & Mechanical Properties & features:
|
||||||||||||
| Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Al | ||
| 1060 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 99.6 | ||||
| 1050 | 0.25 | 0.4 | 0.05 | 0.05 | 0.05 | 0.05 | 0.03 | 99.5 | ||||
| 1100 | 0.95 | 0.05-0.2 | 0.05 | 0.1 | 99.0 | |||||||
| 1200 | 1.0 | 0.05 | 0.05 | 0.1 | 0.05 | 99.0 | ||||||
| 3003 | 0.6 | 0.7 | 0.05-0.2 | 1.0-1.5 | 0.1 | remainder | ||||||
Aluminum chequered plate 3003 application and usage:
-Use: It is mainly used for the work with slightly higher strength requirement than Series 1, such as pressure tank, storage tank, heat preservation material, mechanical parts, automobile and aircraft fuel tank, etc. It is used in air conditioner, refrigerator, car and plane. Conventional applications in air conditioning, refrigerators, under the car and other humid environments, the price is higher than 1 x x x x series, is a more commonly used alloy series.
How much is a sheet of aluminum chequered plate? What’s the price of aluminum tread plate?
The aluminum chequered plate price changes everyday and it depends on the market.
Here is our aluminum sheet price per KGS for you:
| ALLOY | Thickness | FOB Price
USD/KGS |
Produce time | MOQ | Standard Size | 1 x20FCL |
| 1050 H24
1100 H14 |
0.7mm to 6mm | 2.20USD/KGS | 15 Days | 3 TONS | 4’ x 8’
1000 x 3000mm |
22 Tons |
| 3003 H14 | 0.8mm to 6mm | 2.25USD/KGS | 4’ x 8’
1220 x 2440mm |
|||
| 5052 H32 | 1.0mm to 6mm | 2.51USD/KGS | 30 Days | 4’ x 8’ | ||
| 6061 T6 | 1.0mm to 20mm | 2.95USD/KGS | 4’ x 8’ |

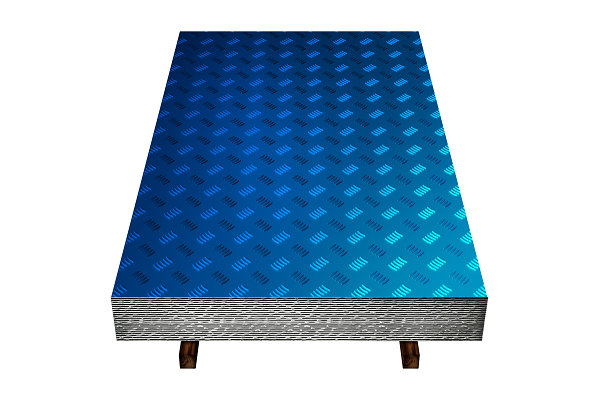

Aluminum checkered plate 1050 H14
Alloy 1050 H14 is the most wildly used alloy number. Because it is bright surface, also very good corrosion resistance to water or rain. So mainly used for Refrigeration floor, Truck floor, flooring, stairs, indoor and outdoor decoration
